`61-`63 215 (STD, +.020,+.030,+.040)

Specify 9:1 or 10.25:1 Compression Ratio

*Complete Set of 8*

`64-`67 300-340 (STD, +.020,+.030,+.040,+.060)

Notched Pistons Are Available

*Complete Set of 8*

`68-`81 350 (STD, +.020,.030,.040,.060), 8.5 or 10:1 CR **

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

`67-`69 400 (STD, +.020,.030,.040,.060),  10:1 CR **

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

`59-`66 401 (STD, +.020,+.030,+.040,+.060), 10:1 CR **

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

`63-`66 425 (STD, +.020,+.030,+.040,+.060), 10:1 CR **

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

`67-`69 430 (STD, +.020,+.030, +.040, +.060), 10:1 CR **

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

`70-`76 455, (STD, +.020, +.030, +.040, +.050, +.060), 8.5 or 10:1 CR **

.050 Pistons are a TA Exclusive. Just another piece to extend the life of your precious Buick 455!

** Note: Compression ratios are advertised and may not calculate out the same with your combination, please
inquire when ordering

*Complete Set of 8*

Pistons come in .038” over bore for 455 engines and are a flat top design with .300" deep, 9cc valve reliefs. These pistons have a 1.995” compression height, .990" pin and utilize the popular 1/16”, 1/16”, 3/16” ring package. Approx. 11:1 compression with stock deck height and 70 cc combustion chamber heads, and 12:1 with .010” deck height. These flat top pistons can achieve over 13:1 depending on your combination.

455 .038 11:1-13:1 Compression Ratio

Pistons have the same bore, valve reliefs and ring features as our TA 1611, but with 1.775” compression height. When used with our 494 stroker combination the modified compression height reduces the amount of side loading on the piston. Part Number TA 1612 is specifically for our 494 stroker kit. Use TA 1610 custom pistons for all other bore and stroke combinations.

455 .038 11:1 Stroker Piston for 494 Kit

`70-`76  455 (+.030), 10:1 CR

Note: Compression ratios are advertised and may not calculate out the same with your combination, please inquire when ordering

`70-`76 455 ( +.030) WITH Notches, 10:1 CR

Note: Compression ratios are advertised and may not calculate out the same with your combination, please inquire when ordering

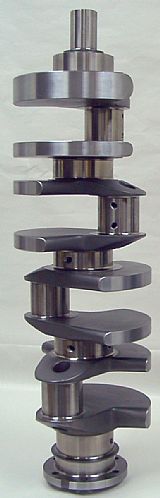

Replacement Crank shaft only 350, 400-430-455.

A $250 core charge applies, which is refundable when a usable crankshaft is returned.

Custom Crankshaft only 350, 400-430-455

A $250 core charge applies, which is refundable when a usable crankshaft is returned.

Steel Billet 4340 Stroker Crankshaft only 400-430-455, 4.400” Stroke, “523”

Otherstrokes are available upon request, please call

Features Nitrided Journals

340-350 Connecting Rods

A core charge applies, which is refundable if a useable rod
set is returned. - $160 core

400-430-455 Connecting Rods

A core charge applies, which is refundable if a useable rod
set is returned. - $160 core

401-425 Nailhead Connecting Rods

A core charge applies, which is refundable if a useable rod
set is returned. - $160 core

350 TA Billet Aluminum Rods.

We can make any custom aluminum rod up to 7.350” long, please inquire.
